Horzontal BEarings

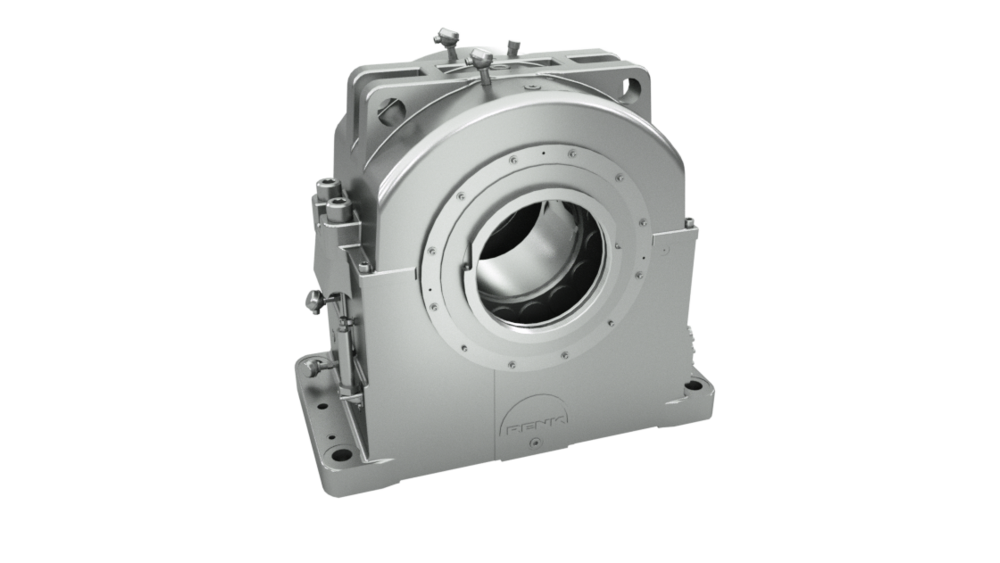

HG type – pedestal driveshaft bearing
RENK pedestal bearings in the HG range are self-lubricating slide bearings for high radial and axial load in conjunction with high speeds in a single direction of rotation, independent of the load direction. They were developed primarily for the mounting of hydro generators and electrical machines in stationary applications on land.
The key features of the HG bearings are the tiltable, round RENK RD slide shoes. These are supported via cup springs, thereby ensuring a uniform distribution of axial loads.
Features
- Bearing design tailored especially to water power applications
- Self-lubricating operation despite high shaft speed
- Integration of special customer-specific requirements
- Optimized design has been tried and tested in numerous applications
- Noise and vibrations during operation are generally low
- Overhaul and maintenance possible for installed shaft
Technical Data
Shaft diameter: | 250 to 710 mm |
Construction: | Pedestal bearing |
Lubrication: | Self-lubricating |
Cooling: | Natural cooling or water cooling |
Options: | Hydrostatic system, integrated electrical insulation |
