Our RVM solution for condition monitoring

Our RVM solution for condition monitoring

Maximizing the availability and lowering maintenance costs

To get all the benefits from condition monitoring you need a flexible and easy to use solution. Our RVM (RENK Vibration Monitoring) system lets you detect even the smallest impending anomalies in the drive train early on and identify their exact cause. This allows you to plan preventative measures, troubleshoot errors, and prevent secondary damage – at the right time. The result is maximum availability of your system and lower maintenance costs over the long term.

01 Maximize Availability

Early detection of even smallest irregularities enable scheduled counter measures

Damage to the machine can be noticed by the employee due to noise, heat and smoke development. At this point, there is usually not much time left to avoid a cost-intensive repair or an unplanned downtime.

Our condition monitoring solution is able to detect and analyze the smallest irregularities in the entire drive train far in advance before the human senses can pick up on them. Using RVM, data is continuously collected and analyzed to provide continuous condition assessment as well as data visualization. Depending on the application, we offer an offline or online condition monitoring system based on your individual needs.

Continuous and ongoing fault detection and analysis enables the initiation of measures such as maintenance, adjustment of load conditions or, if necessary, the procurement of spare parts.

02  Reduce Mainteinance Costs

Knowing the root causes enables focused maintenance and spare part management

Using our condition monitoring solution, an analysis and fault identification can already be started via intelligent data processing to optimize the service mission to have the right tools in place and knowing the problem to focus on the right maintenance actions. Therefore, the costs for the field service can be reduced by up to 30%.

The RENK Vibration Monitoring combines OEM’s know-how in fault analysis with the software supported intelligence of a condition monitoring system. As soon as you have an anomaly on your asset, our field service can help you to identify the cause and the specific problem.

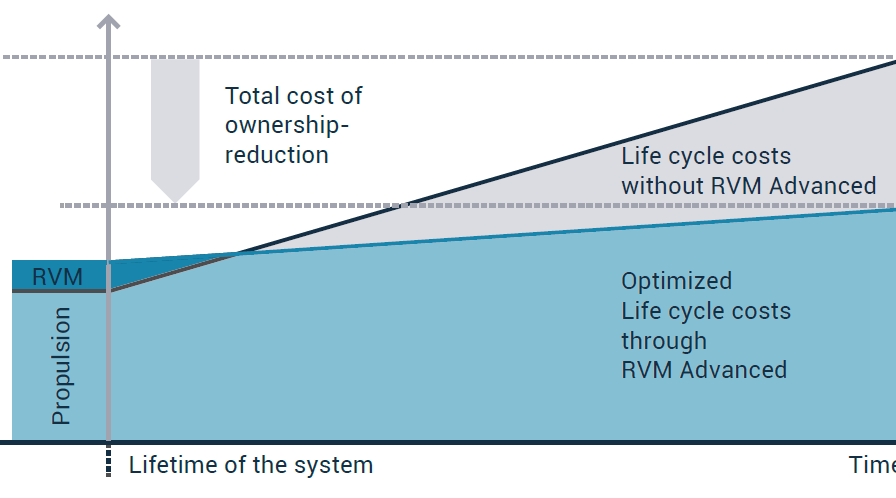

Overall this results on savings on maintenance costs, increase in your production output and a reduce in the total costs of ownership in the long term.

03 Flexible and Quick Setup

Quick and flexible commissioning of your condition monitoring solution

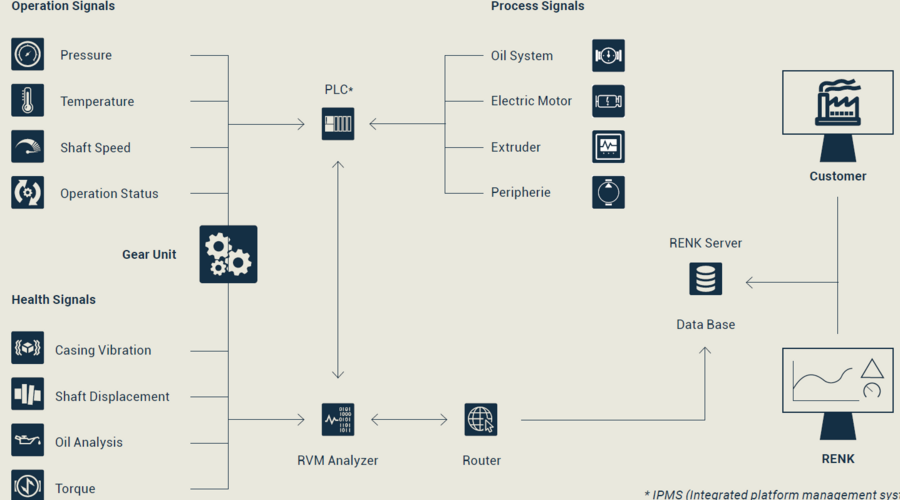

The RVM is a flexible and modular system for a wide range of sensors and applications implementing the most important operating parameters in order to be able to assure operational safety.  Also the integration into control systems for data transmission and visualization is far from complicated.

The solution is  available as an offline or online condition monitoring system depending on individual requirements.

04 Ease of Use

The ease of use reduces the time of learning and misinterpretation

In der Visualisierung der Anlage wird die konkrete Kinematik des Kunden dargestellt. Dadurch findet sich der Operator direkt zurecht und kann die Lage besser deuten.

Falls ein Schwellwert überschritten wird kann je nach Ausprägung ein unterschiedlicher Farbcode hinterlegt und entsprechend angezeigt werden. Ebenfalls kann in einem Alarm-Log die Historie geprüft werden.

Damit entsprechende Alarmfunktionen sicherzustellen wird die Messekette kontinuierlich überwacht und Auffälligkeiten ebenfalls berichtet (z.B. Kabelbruch, ...).

RVM geht aber noch einen Schritt weiter und gibt eine mögliche Fehlerursache an und wird in einem übersichtlichen Report an die Operator übermittelt.



(Hier vielleicht verschiedene Screenshots aus dem Tool (möglichst 4:3 oder 16:9) für die unterschiedlichen Aspekte)

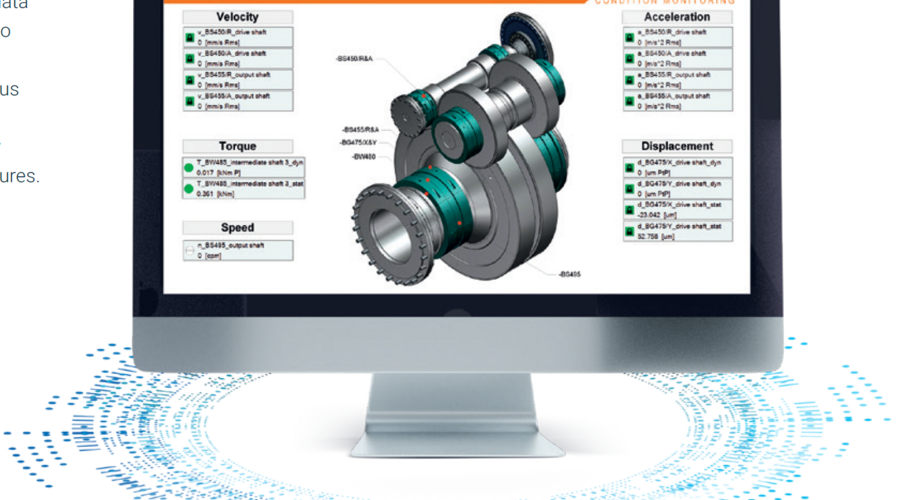

RVM offers intuitive usability for the operator. , a clear visualization and provides various alarm messages which are easy to understand.

In the event of an anomaly, the system supports a guided and thus targeted root cause analysis, which enables effective maintenance planning as well as optimized spare parts procurement.

Features

The features of our RVM at a glance

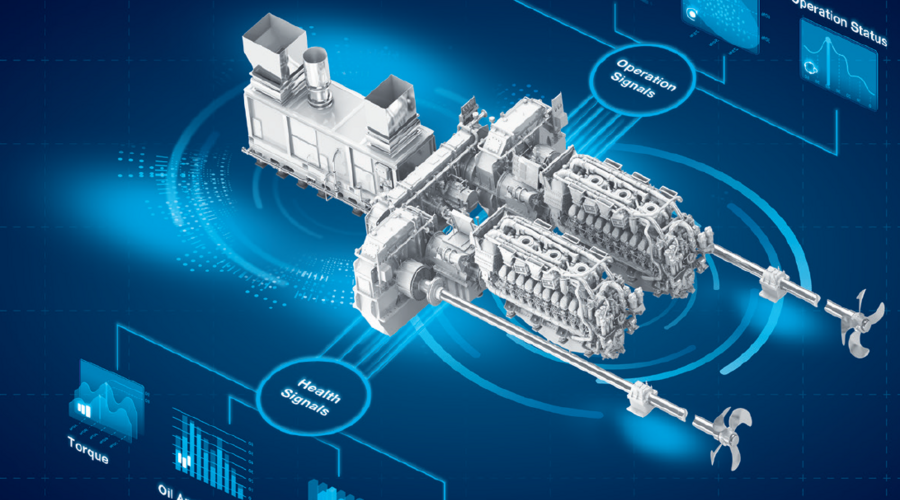

Knowing machine behavior is a key for a comprehensive condition assessment.

  • Shaft displacement
  • Casing vibration
  • Torque
  • Speed
  • Temperature
  • Pressure
  • Operation and process values

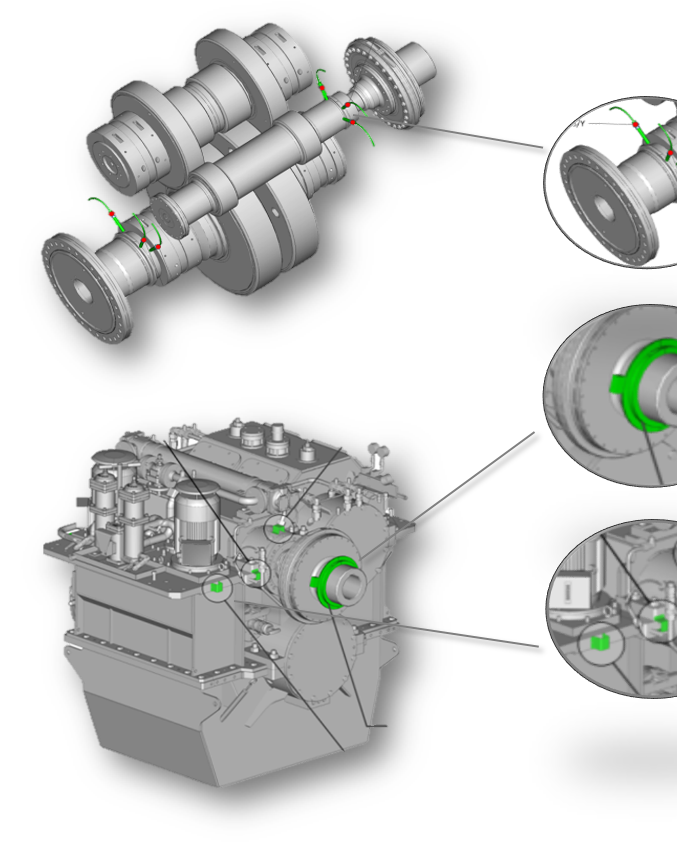

From analog to digital - we are implementing any kind of sensors and systems:

  • Acceleration sensors inside and outside
  • Speed sensors
  • Displacement sensors
  • Torque sensors
  • Metal particle sensors
  • Integration of third party sensors
  • Integration of operation and process parameters (e.g. via bus interface)

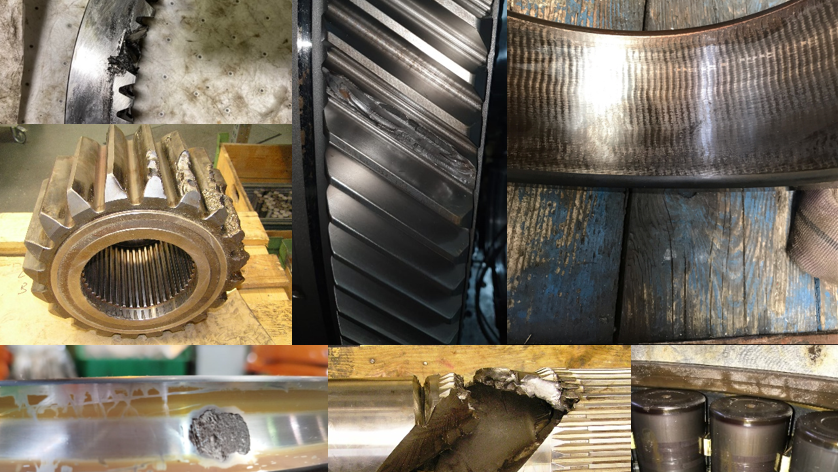

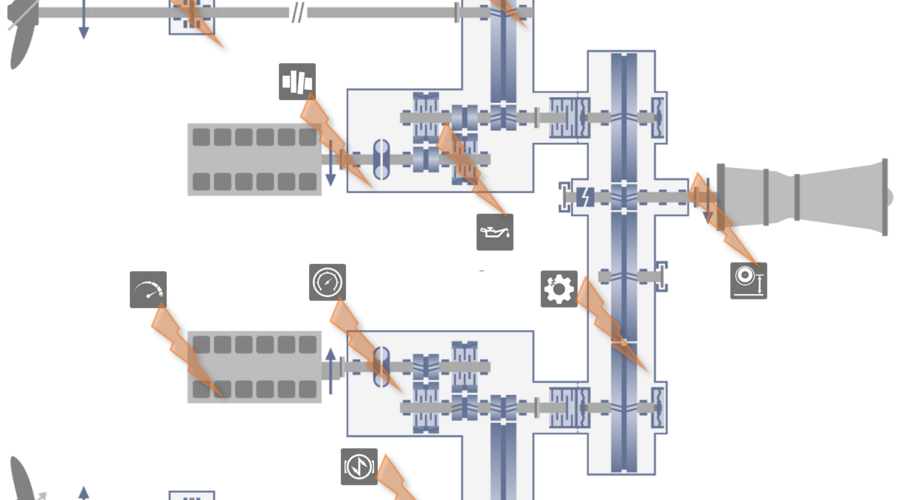

We analyse all kinds of damage scenarios that need to be prevented before they lead to a fatal error.

  • Roller bearing damages
  • Slide bearing anomalies
  • Shaft bent
  • Cocked bearing
  • Toothing wear
  • Coupling aging
  • Unbalance
  • Misalignment
  • Torsional vibration
  • Overload
  • Load Distribution
  • Blade abnormalities
  • Gravitation
  • Metal particles in oil circuit
  • Loosness
  • Resonance

Our monitoring scope follows your needs and covers all kind of rotating components.

RVM standard monitoring

  • Shafts
  • Meshings
  • Peripheries
  • Oil supply units
  • Clutches
  • Sleeve and roller bearings (thrust bearings and pillow blocks)
  • Pumps (build-on and stand-by)

Optional extensions

  • E-Motors
  • Main engines
  • Propeller
  • Generator
  • Fans

Our solutions offer a wide range of helpful data and analysis tools. This allows you to decide how deep you want to dive into the data.

  • Frequency spectra
  • Order analysis
  • Envelope spectra
  • Trend
  • Orbit
  • Polar plot
  • Contour plot
  • Waterfall plot
  • Event-Capture
