Production horizontal support bearing

Horizontal thrust bearings – Ingrained reliability to the micrometer.

Horizontal thrust and support bearings for withstanding strong radial and axial forces.

Maximizing your plant’s availability was our benchmark when developing our innovative support bearings. Depending on the type, the bearing housings are available as pedestal, center flange (type SM) or saddle bearings. Operate them either with self-lubrication or with external lubricant supply. Some examples of our product lines:

  • Our SN, D- and L-Series bearings are the choice for conventional marine drives with shaft line and hydro turbines and generators
  • The SC line is designed as pedestal bearings and can support moderate axial forces in addition to high radial forces.
  • Our SM series are specially designed for use as engine bearings in marine applications or as generator bearings in hydro applications.

Overview of our horizontal bearings

 TypeSize in mmShaft diameter
in mm
Application
SC36–140200–1400Electrical machinery, diesel generators, rolling mill drives, hydro turbines and generators
SM225560Marine propulsion motors, hydropower, alternators
WG600–9000200–1400Large electric machines, rolling mill drives
HG28–45250–560Hydro turbines and generators, large electric machines
SN16–100140–1000 Shipbuilding (main propulsion), hydro turbines and generators
DN/DG/DR16–80180–850Shipbuilding (main propulsion), hydro turbines and generators
LAR 125–850Shipbuilding (main propulsion), hydro turbines and generators
LR13–85110–850Shipbuilding (main propulsion), hydro turbines and generators
I10–22100–200Cement industry, tube mill drives, Crushers
IS10–52100–520Heavy series for cement industry, tube mill drives, Crushers
D type

D type

LA type

LA type

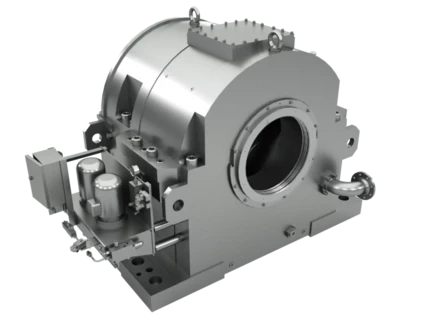

WG type

WG type

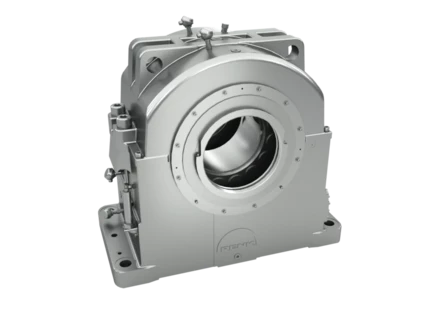

HG type

HG type

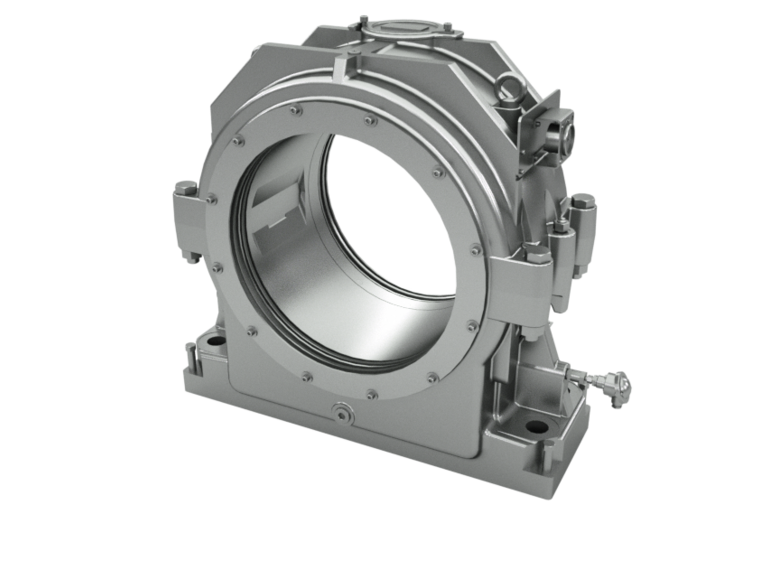

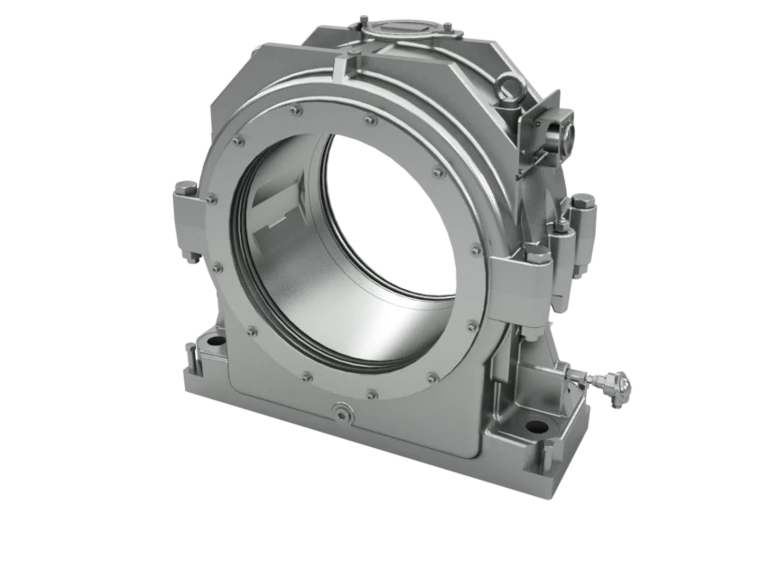

LR/SN type

LR/SN type

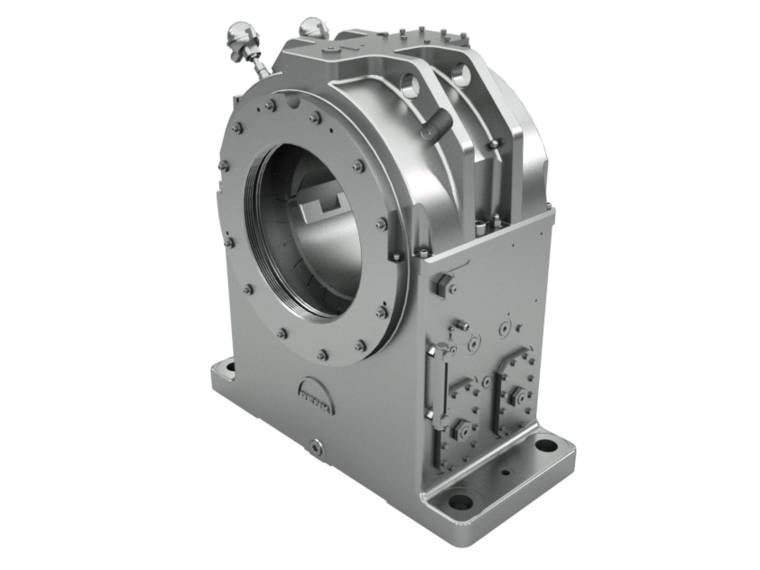

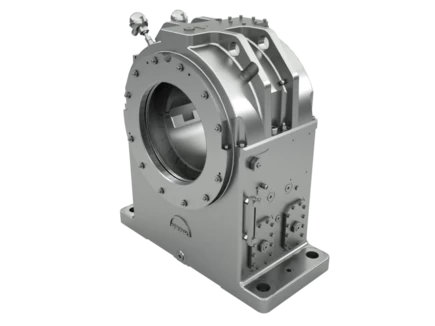

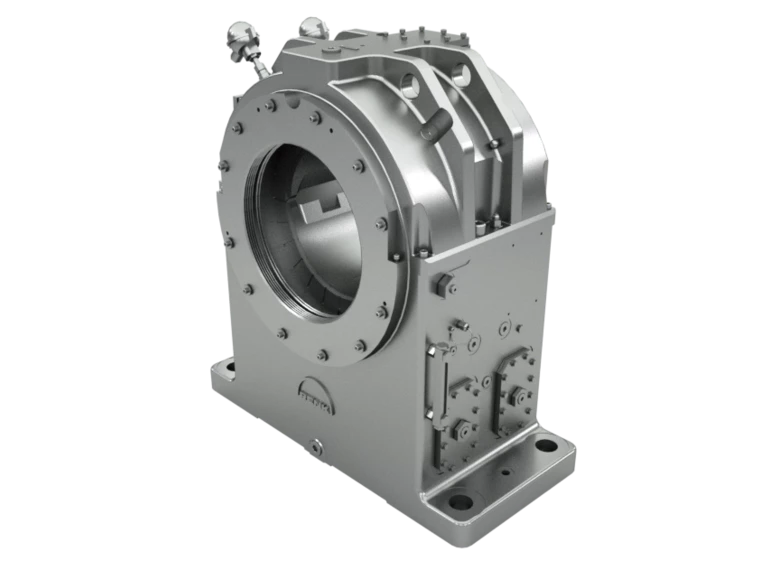

SC type

SC type

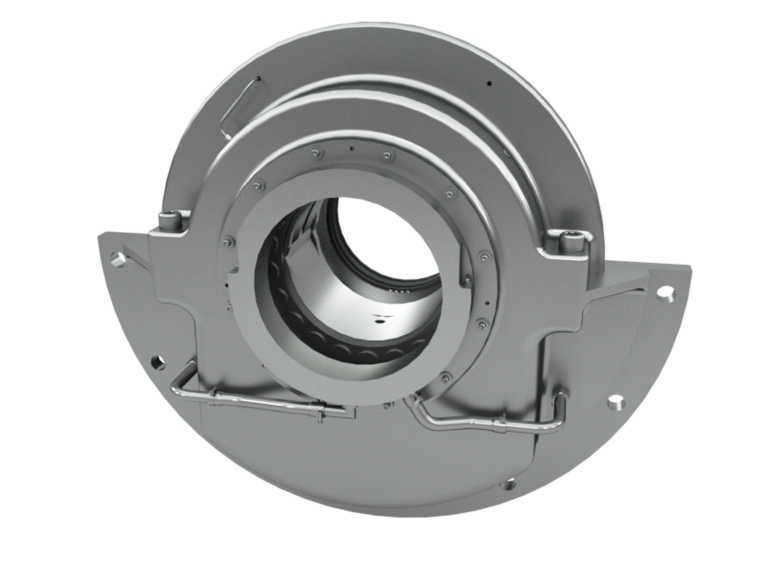

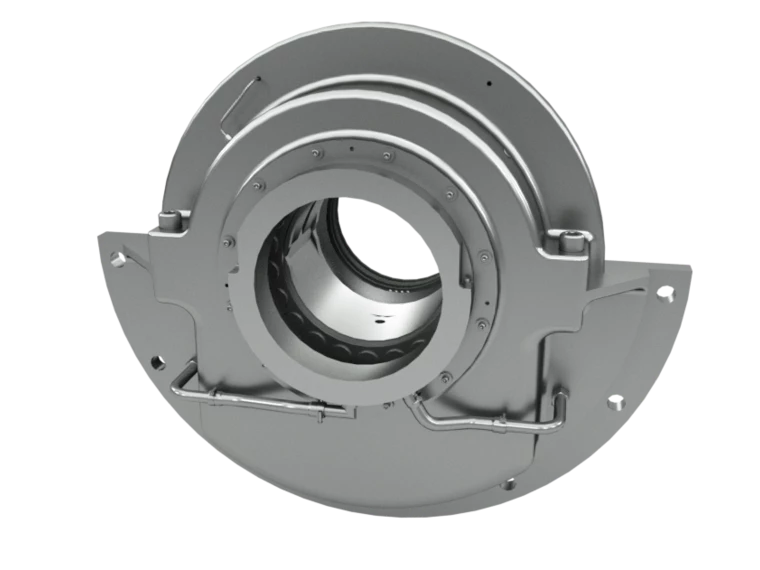

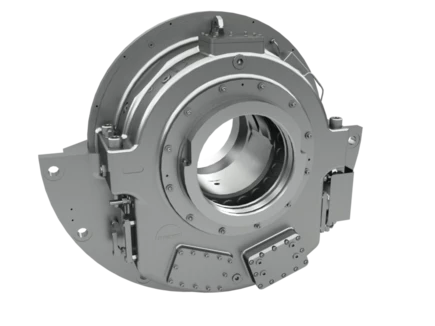

SM type

SM type
