Single Engine gearboxes

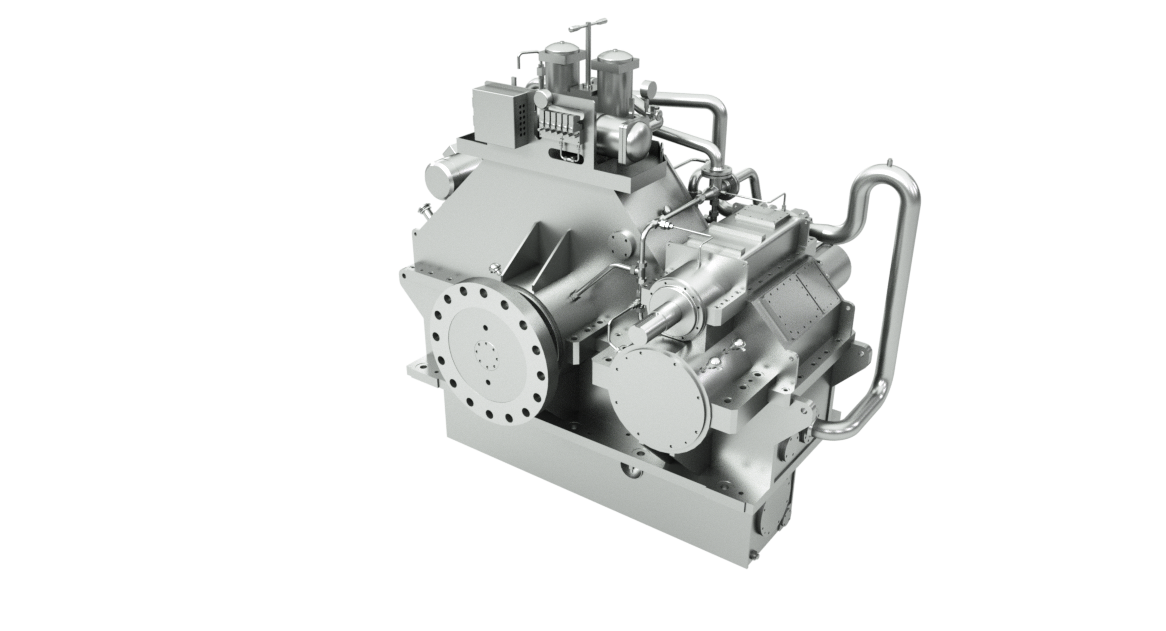

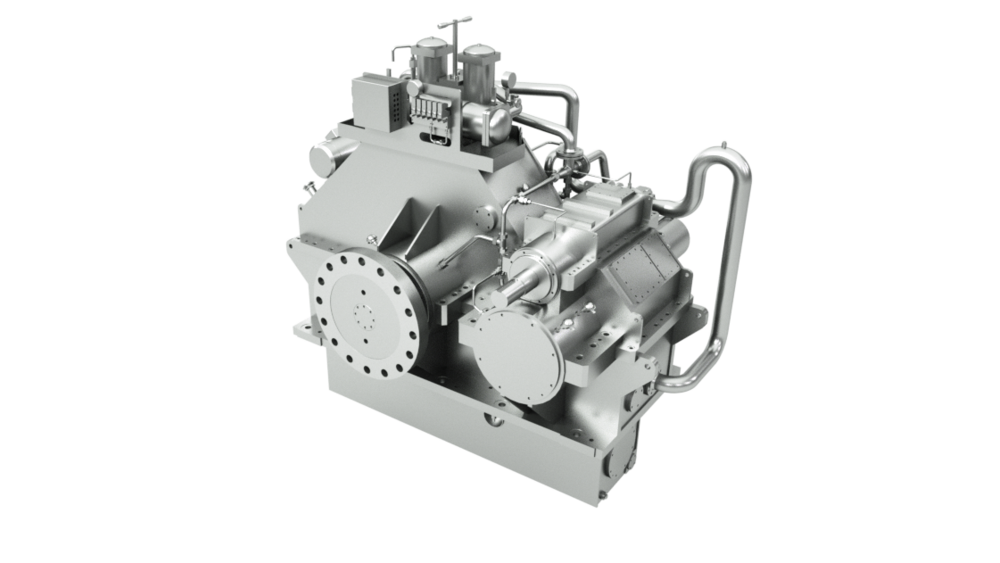

RSH – double gear unit
The RENK Group is one of the world’s leading manufacturers of marine gear units. As a specialist for single and double-motor gear units as well as for propeller shaft couplings, we are a preferred partner for the development of innovative marine gear unit solutions for gas tankers. A majority of gas tankers equipped with gas-diesel-electric propulsion systems (DFDE) uses single or double marine gear units from RENK. Double gear units are designed with center distances of up to 4,400 mm. Two electric engines are combined with a double gear unit in this case, and deliver a maximum output of 30,000 kW to the fixed pitch propeller.
Features
- Reliable
- Gearing that interlocks perfectly
- Solid base and robust housing, designed for high loads
- Slide bearings of the highest quality for maintenance-free gear units
- Tailored solutions with customized transmission ratios
- Variable power take-off solutions
- Noise-optimized design
Technical Data
| Power range: | 1,500 kW–22,000 kW |
| Wheelbases: | 500–2,200 mm |
| Center distances between engines: | 1,800–5,000 mm |
| Power range: | 2 x 1,500 kW – 2 x 35,000 kW |
Downloads
Get in touch with our experts in case of any questions.
Marine Solutions Team
