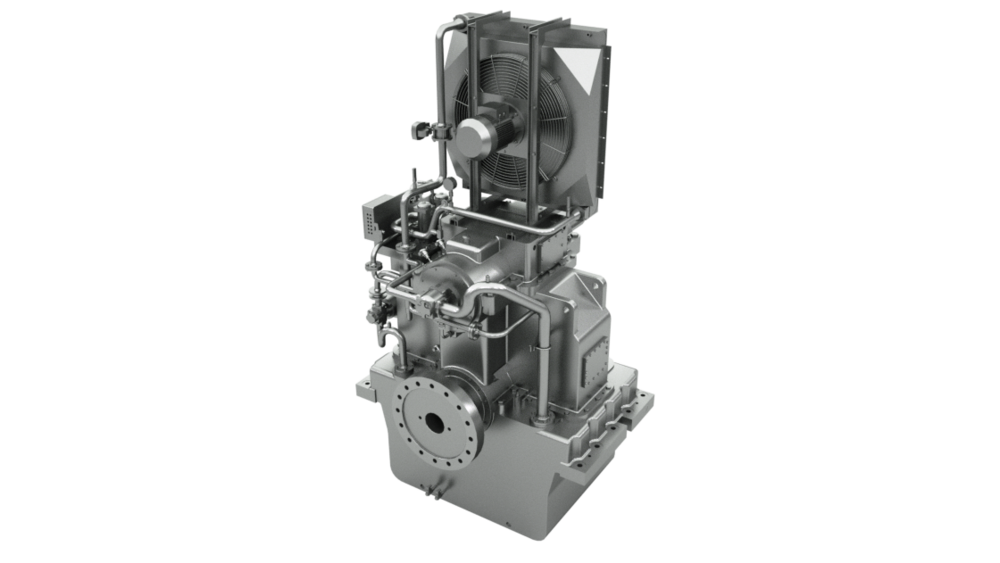

RIV slide bearing gear units

The slide bearing gear units of the RIV type group are the result of targeted standardization and development for applications in the field of power production via hydropower in the paper industry. This series has been very successfully employed in vertical Kaplan turbine systems thanks to continuous further developments since 1985. An optimized series of high-performance industrial gear units tailored to a broad range of applications was created based on many years of experience and incorporating the latest design and analysis tools. Gear units in this series are available with center distances from 500 to 1,500 mm.

Fifteen graduated sizes enable an optimal selection for these application scenarios. All pinion shafts and gear wheels are made of alloyed, highly wear-resistant case-hardened steel. Designed to be highly dependable, the toothing is ground and case-hardened. The gear geometry is optimized according to the respective application scenario and the running parameters.

Finely optimized radial slide bearings are used for the shaft bearings. A separate axial slide bearing with heavy axial stop collars is used as the axial bearing of the wheel shaft in the standard version. The adjusting device of the turbine can be routed through the wheel shaft. The gear unit is equipped with its own lubricant system, which contains all of the required pumps, coolers, filters, and monitoring instruments. Hydrostatic jacking is available as an option in the slide bearings.
