Transmissions
Vehicle transmission HSWL 354

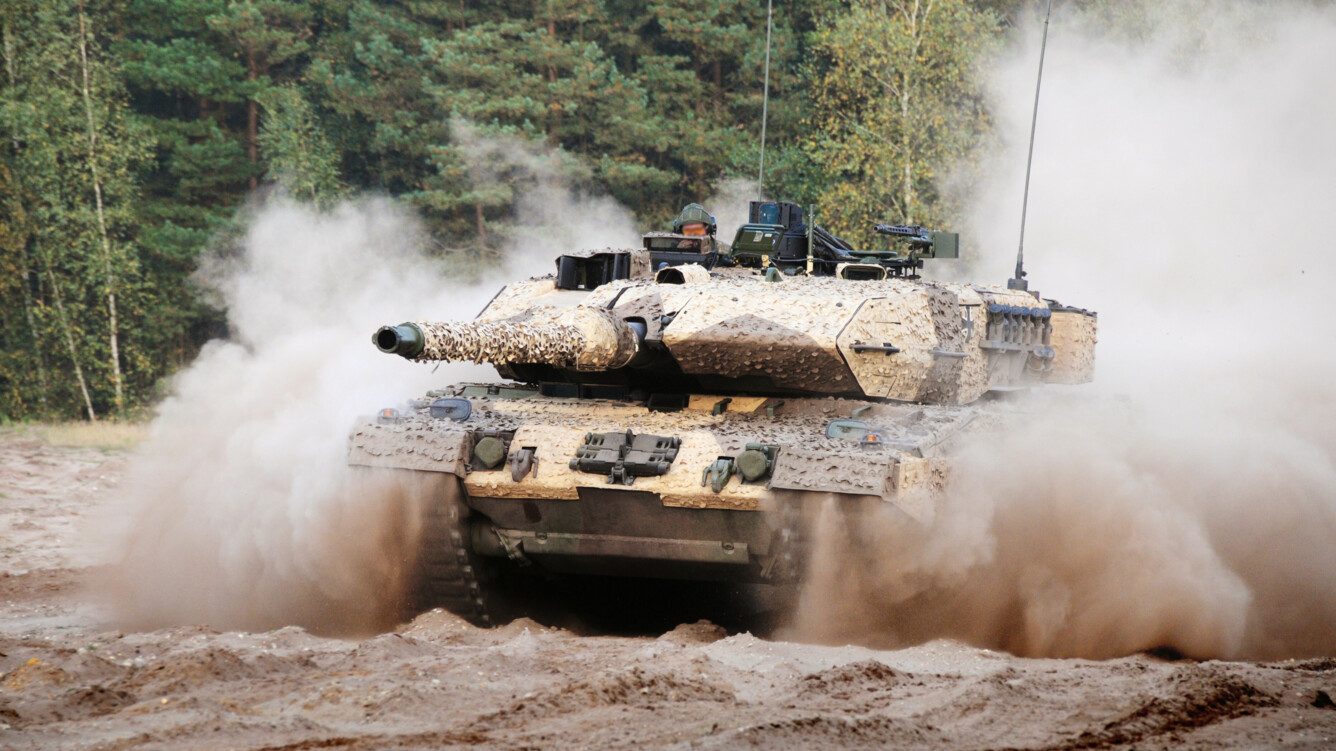

The HSWL 354 is a proven and reliable gear unit, as demonstrated by its use in the Leopard 2 main battle tank and family vehicles. The gear unit has been in series production since 1983 and is in service in 18 countries to date with the full support of RENK.
Features
- For tracked vehicles 50–70 t
- Power range 900–1,300 kW (1,800 hp)
- 4 speed forward / 4 speed reverse
Technical Data
| Dimensions: | 1,722 x 1,140 x 785 mm |
| Maximum engine power: | 1,300 kW (1,800 hp) |
| Vehicle weight, typical: | 50–70 t |
| Power shift transmission: | 4 speed forward, 4 speed reverse |
| Overall ratio, mechanical: | 4.5 |
| Stall torque ratio: | 2.5 |
| Transmission weight (without oil filling): | 2,250 kg |
| Brake system: | Fully integrated, high performance |
| Steering system: | Integrated, high maneuverability |
