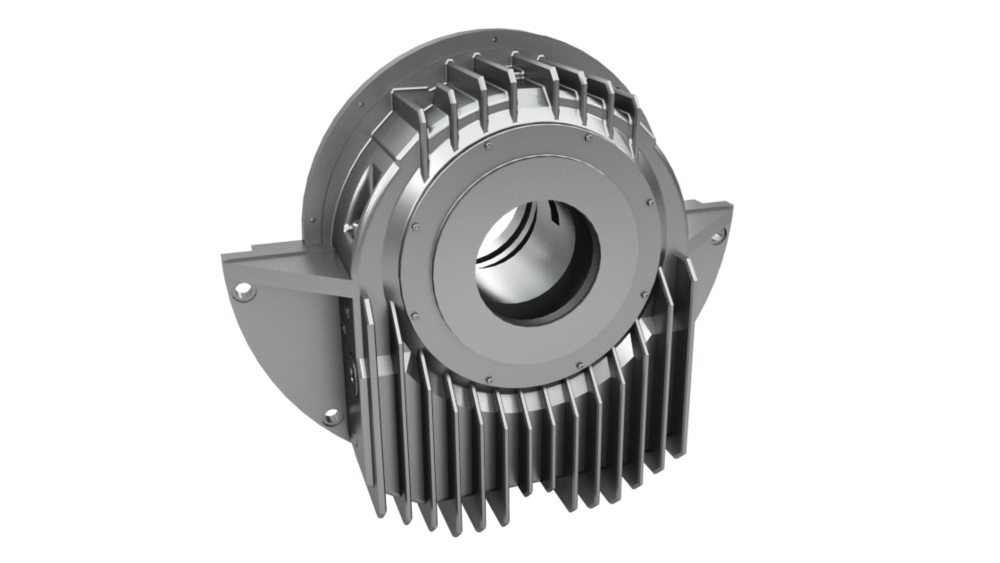

EM type – finned middle flange bearing

We developed the EM bearing type to meet the need for extremely small bearing clearances with a simultaneously high level of structural strength of the assembly unit, consisting of the nameplate and bearing. The mounting flange is located in the axial center of the housing and therefore enables the direct, vertical application of loads into the nameplate. The bearing housing is connected via the lower section of the housing. This means that the nameplates can also be split, and only the lower half needs to exhibit a high degree of rigidity. Very large access areas to the interior of the machine and the bearings can be provided for installation purposes – an extraordinary advantage when assembling the machine and performing maintenance work. This housing shape serves as a very suitable basis for a wide range of expansion stages in demanding drive concepts in particular. You could say that the EM type is a functional, multi-purpose bearing – for durable, low-speed machines up to turbo generators running at maximum speeds. The centrally flange-mounted bearings designed with an enlarged housing surface (ZM7, EM9S, EM14S/XS) are a special type of bearings for smaller shaft diameters. In cases where products exhibit a low degree of variation, these bearings offer optimized functionalities for operation with natural cooling, which means that two-pole electrical machines, for example, can be built without separate lubricating units.
