Test rigs for power-gearboxes
- 01Test power approx. 100 MW (136,000 hp)
- 02Additional 5 DOF hydraulic load application unit
- 03600 measuring channels
Our technologies for your demands
RENK has also already implemented test rig solutions for extremely powerful gear units in the multi-megawatt range up to test powers of 100 megawatts.
Innovative power gear units are to decouple the speeds of the driving turbine from the engine fan in jet aircraft and thus enable larger fan diameters and even higher efficiency of future engine generations. In the test rig, these transmissions are not only loaded with torque but, as in reality, with a mixture of different dynamic radial and axial forces.
Powerful mechanical closed loop

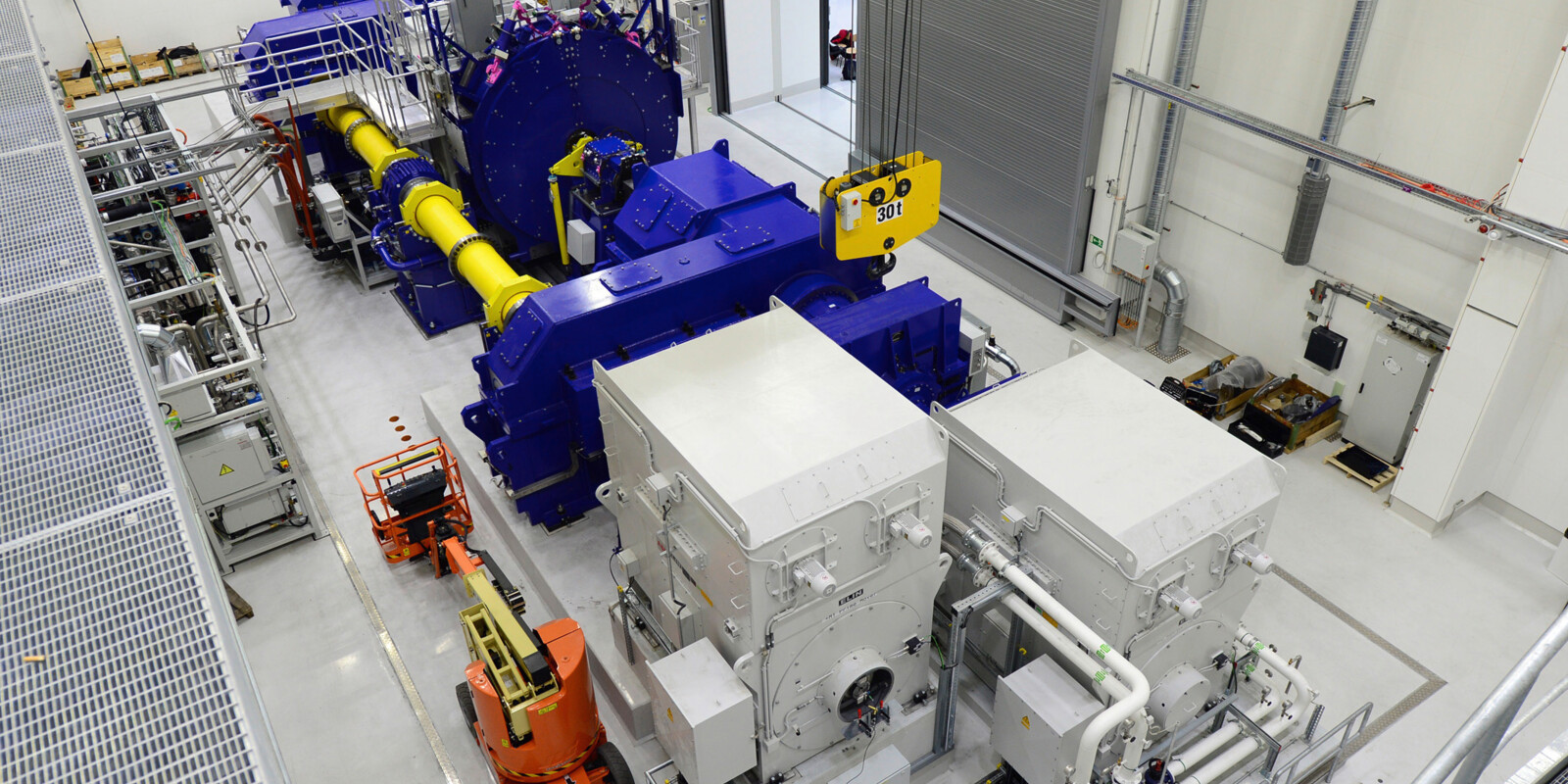

The test stand is driven by two medium-voltage motors with 11 MW each. Special gear units are used to build up a mechanical tensioning circuit in which the load gearbox introduces the required tensioning power. This tensioning power can be precisely controlled up to a maximum of 100 MW.
Multi-axis forces and bending moments

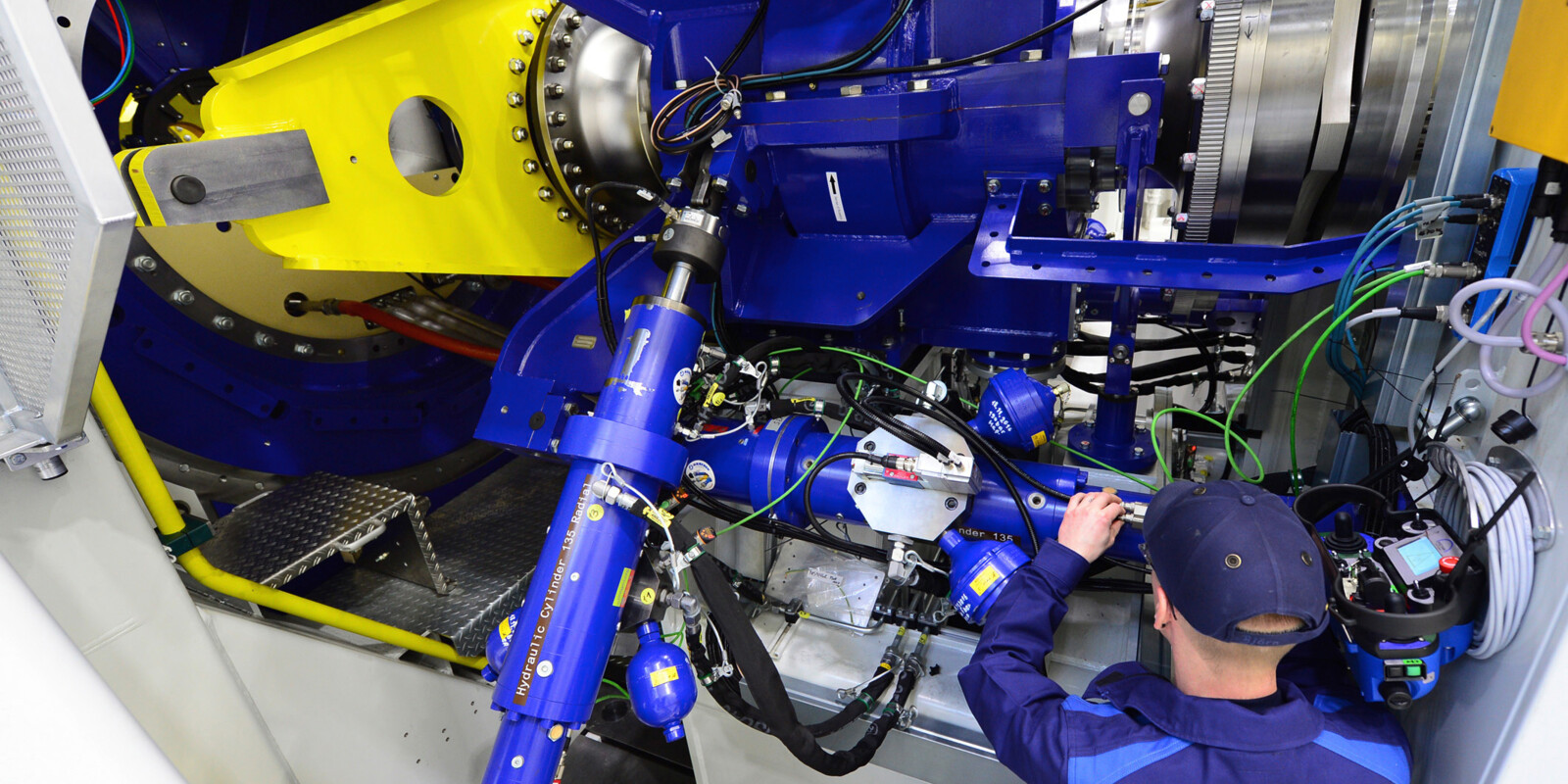

An additional load application unit allows all forces occurring in real operation to be simulated in the test rig. In addition to the torque of the motors, this loading unit enables the static and dynamic simulation of transverse and longitudinal forces as well as multi-axis bending moments.
Big data
Internal and external measurement technology, safety circuits and building technology provide enormous amounts of data. The RDDS test stand automation provides 600 measuring channels for this purpose, which records and stores all sensor data online. The data relevant for the current test are graphically displayed to the operator at any time and made available for parallel analyses.
Features
- Test bench for turbine gearboxes of highest power
- Mechanical closed loop + additional 5 DOF load application unit
- Extreme power range
- Extreme control and handling complexity
- Wide range of communication protocols used simultaneously (EtherCAT, PROFIBUS, CAN, SSI, IEEE 1588, DDS)
- Unrivaled reliability and durability
- Master RENK RDDS automation system and measurement acquisition
