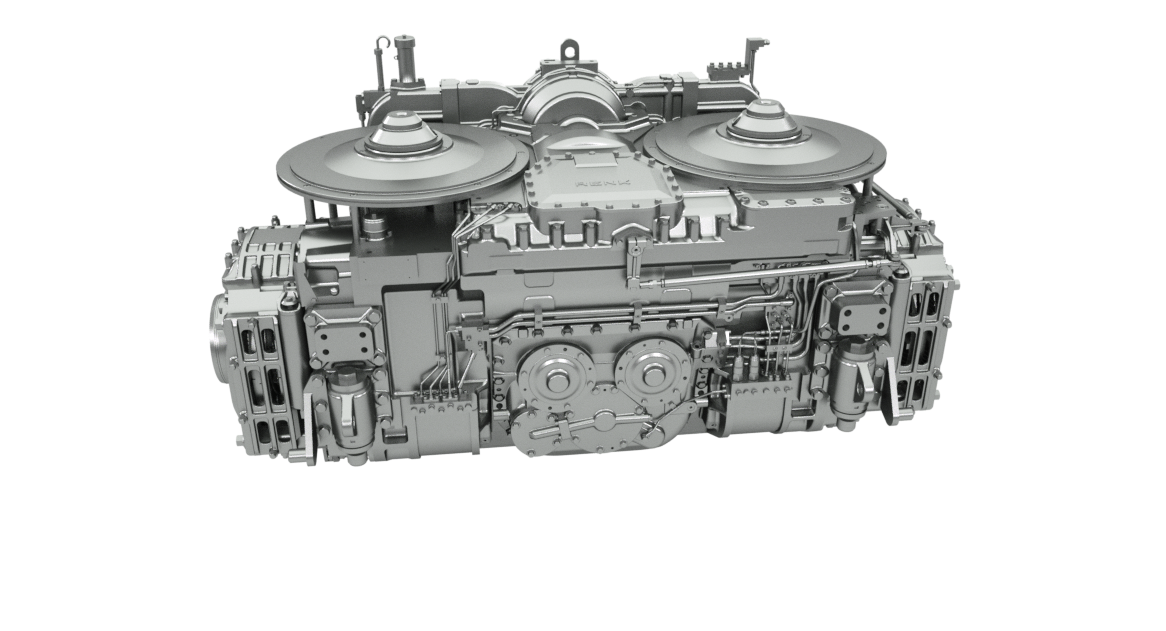

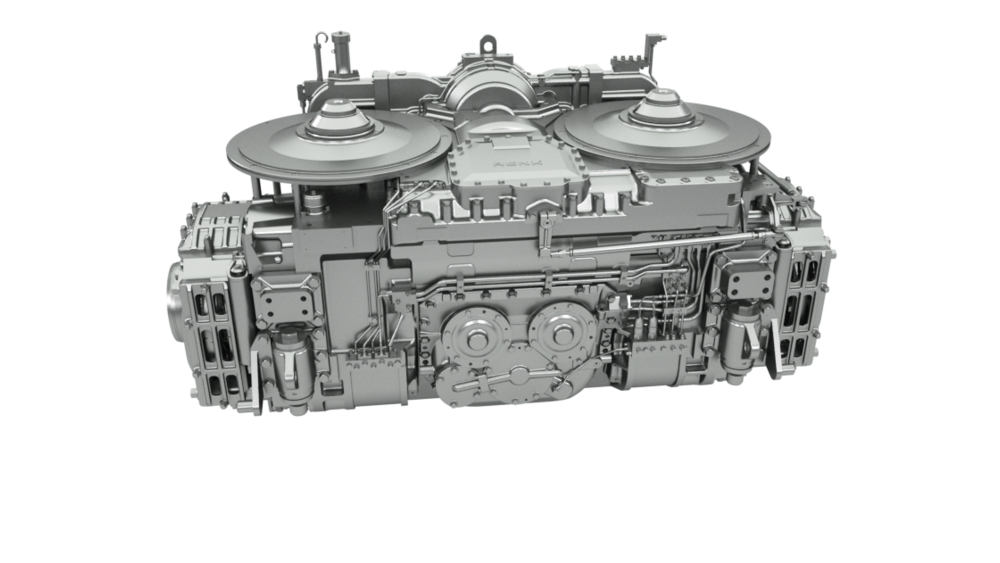

This tried-and-tested transmission Transmission The function of a vehicle transmission is to adjust the torque and speed, and to transfer engine power to the drive wheels. offers state-of-the-art technology for decades to come. It ensures maximum mobility, performance and acceleration of the vehicle in any terrain. The electronically controlled automatic transmission Transmission The function of a vehicle transmission is to adjust the torque and speed, and to transfer engine power to the drive wheels. takes the strain off the crew under difficult operating conditions. In conjunction with the modern braking system, optimum driving characteristics are achieved. Its exceptional reliability and durability contribute to the survivability of the vehicle and, above all, the crew.
Features
- For tracked vehicles Tracked vehicles A tracked vehicle is a vehicle that moves on tracks rather than wheels, typically used for rough terrain. 50–70 t
- Power range 650–1,050 kW (1,400 hp)
- 4 speed forward / 4 speed reverse
Technical Data
| Dimensions: | 1,690 x 1,000 x 940 mm |
| Maximum engine power: | 1,050 kW (1,400 hp) |
| Vehicle weight, typical: | 50–70 t |
| Power shift transmission: | 4 speed forward, 4 speed reverse |
| Overall ratio, mechanical: | 4.8 |
| Stall torque ratio: | 2.3 |
| Transmission weight (without oil filling): | 2,300 kg |
| Brake system: | Fully integrated, high performance |
| Steering system: | Integrated, high maneuverability |
Get in touch with our experts in case of any questions.
