Proven components and solutions for your hybrid power pack.
With our portfolio and experience we can safeguard a rugged hybrid solution in time and budget.
Hybrid military vehicles offer a number of benefits over traditional diesel-powered vehicles. The most significant benefits include reduced fuel consumption and emissions, improved performance, and some vital features we describe here.
We from RENK do not only have the demanded components for a hybrid system, we have created and implemented complete solutions.
- Transmissions
- Motors and generators
- Power electronic unit
- Fully integrated hybrid system
Proven technology ready for your hybrid solution
Our transmission portfolio is the most extensive on the market. And most of our transmissions have a PTO (Power Take Out) and PTI (Power Take In) or can easily be enhanced in case it is missing.
With the PTO option you can connect one of your generators to create power from the main engine. This is either needed to power auxiliary or external system but also to charge a batter system.
With the PTI you can connect an electric drive. Using the battery system, the drive can provide power to the transmission. Either as a quick start when the engine is not running (e.g. in silent watch) or to give an additional boost for fast forward on dangerous terrain.
Investigate with our experts, which of our many transmissions have PTI/PTO capabilities and fit to your project.
With our unmatched transmission scope and military-proven hybrid portfolio, we can offer as of today mobility solutions that others thought would be a topic of the future.

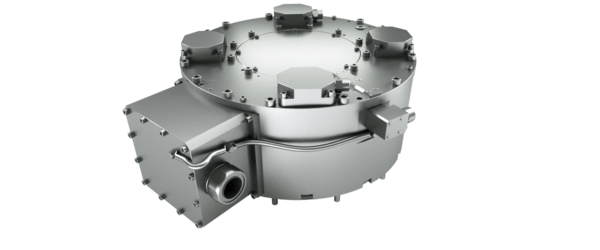

The core for a hybrid system – our power motor generators
The future belongs to the hybrid drive: the Integrated Starter Generator works - in combination with an electric energy storage system - as a motor that supplies power to the drive train parallel to the combustion engine. This combination provides more power in total or allows the use of a smaller main engine. In braking manoeuvres the electric machine, which then works as a generator, recharges the energy storage system, keyword: energy recuperation. Using only the electric drive allows for silent movement of the vehicle or silent watch operations.
For wheel driven vehicles, the M69 can add 120 kW (peak 132 kW) to your power train
The high power hybrid drive with a rated power of 200 kW and a peak of 300kW

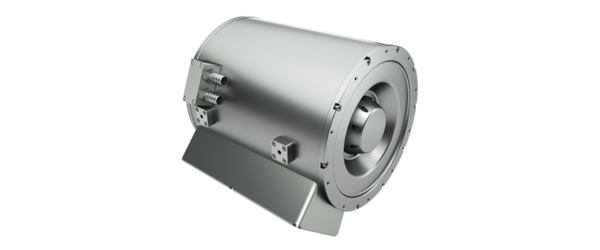

Powerful prime mover for all types of hybridised military vehicles
Highly compact electric machine for easy integration and retrofit
Robust high performance inverter to control power distribution and availability
Our compact power inverter unit features state-of-the-art IGBT technology with efficient liquid cooling and highly sophisticated, dense packaging of circuit boards and components. Its compact size and low weight make the PE31 ideal for use as power inverters of drive motors or generators in any medium- to large-category hybrid vehicles.
The embedded controller features high-speed digital field-oriented control, covers interfaces for various sensors and offers support for a variety of communication standards. It is appropriate for high- torque as well as for high-speed drives up to 800 VDC.
Utilizing the expertise of RENK to create a seamless hybrid system.
Our experts have an enormous expertise with various enginemanufacturers. Besides the know-how our success factor is the broad range of already proven transmission.
With this foundation and the expertise from our electronic competence center in Starnberg and their generators, motors and rugged electronics we can provide your tailored hybrid solution.
And trust us, it is not the first hybrid solution we have already created or are working on.
Get in touch with our experts to find your hybrid solution.
Our experts are always interested to discuss and evaluate the best possible system for your project.
