Turbo Slide Bearings

Combination bearings

Combination bearings

Combination bearings from RENK are a combination of one radial and one or two axial parts. This allows radial and axial forces to be handled in a single bearing location.

For the radial part, all variants of fixed and tilting pad bearings are available. Tilting pad bearings are selected for very high speeds, while fixed profile bearings are suitable for all other applications.

For the axial part, axial tilting pad or axial fixed profile bearings are available. Axial tilting pad bearings are suitable for high loads, while fixed profile axial bearings are suitable for low to medium loads where speed is of secondary importance.

A suitable solution can therefore be found for all operating ranges of radial and axial bearings.

360° View

Turn it around!

RENK slide bearings - combination bearing with radial and thrust tilting pads

Gallery

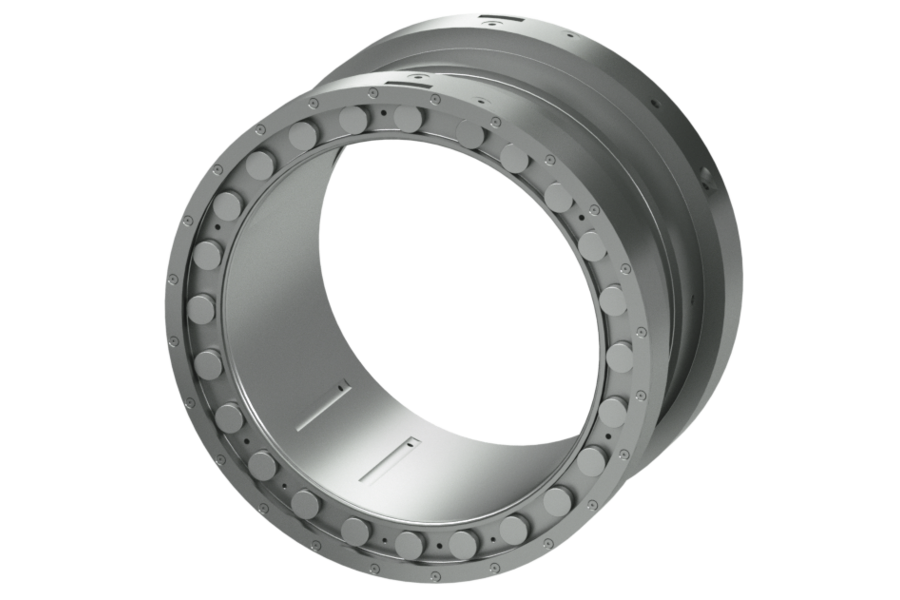

RENK Combination Bearing - Combination bearing with fixed radial profile and circular thrust pads
Combination bearing with fixed radial profile and circular thrust pads
RENK Slide bearings - Combination bearing with fixed radial profile and thrust tilting pads
Combination bearing with fixed radial profile and thrust tilting pads
RENK Slide bearings - Combination bearing with fixed radial and thrust profiles
Combination bearing with fixed radial and thrust profiles

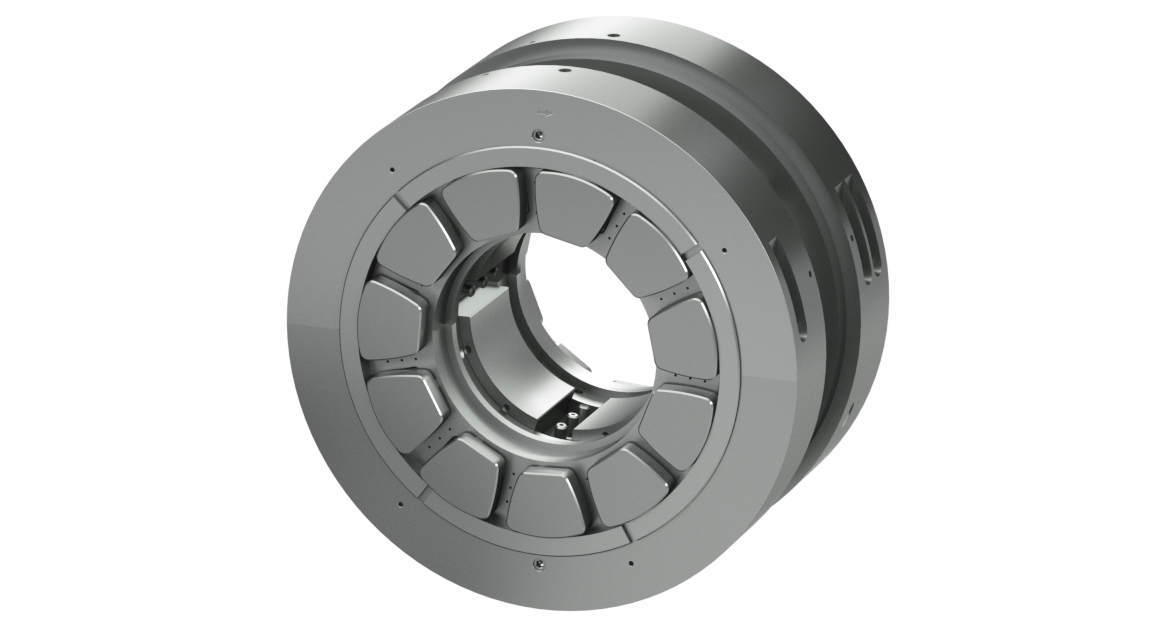

RENK slide bearings - combination bearing with radial and thrust tilting pads
Combination bearing with radial and thrust tilting pads

Downloads

Our combination bearings can be made up of the following components, which we also offer as individual bearings:

Radial Tilting Pad Bearings

Axial Tilting Pad Bearings

Fixed Profile Bearings
