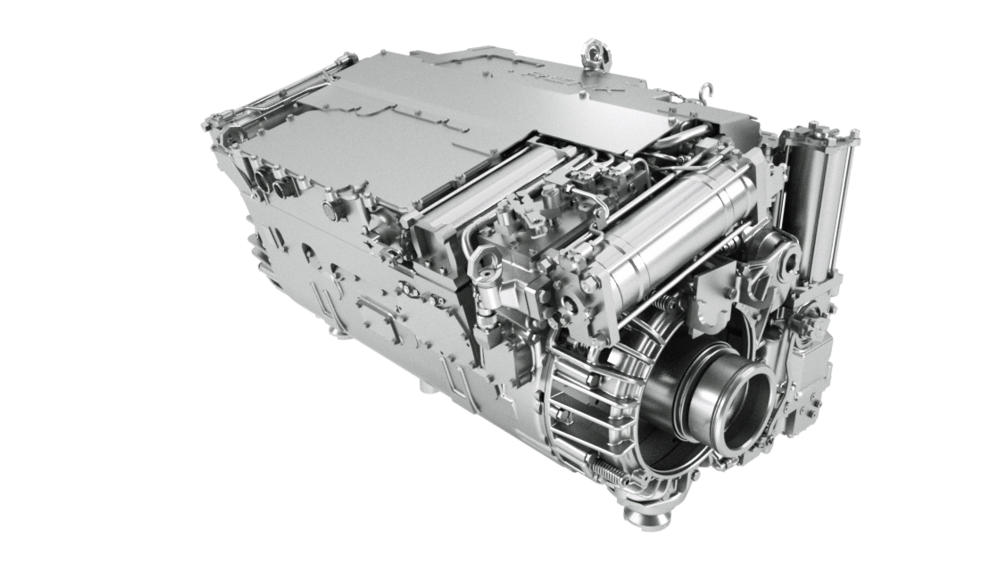

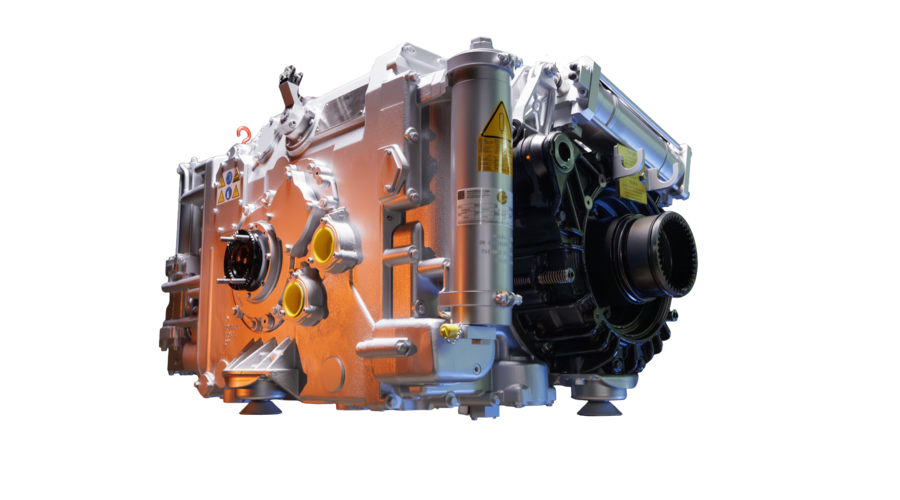

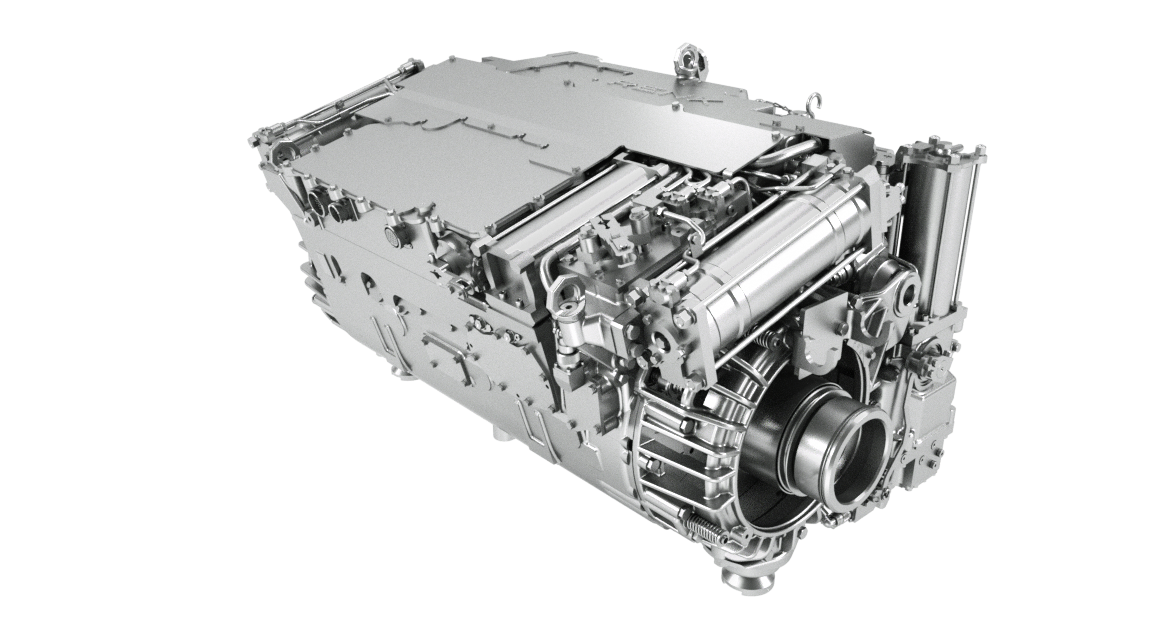

HSWL 076
HSWL 076 – Compact. Digital. Future-Ready.
With the newly developed HSWL 076, RENK is setting new standards in military mobility for light tracked vehicles. This compact, highly integrated transmission Transmission A vehicle transmission transfers engine power to the wheels and allows for variable driving speeds. delivers maximum performance, advanced digital interfaces, drive-by-wire capability, and is designed from the outset for hybridization and unmanned operations. Developed in just two years in close cooperation with a leading Finnish vehicle manufacturer, the HSWL 076 combines robustness, precision, and ease of maintenance. With this development, RENK is sending a strong signal to the market and already has the answer to the demands of tomorrow.
Features
- Compact design with a width of 1.20 meters
- Drive-by-wire ready
- Top speed in excess of 80 km/h
- Operation under arctic conditions thanks to cold start capability
With the HSWL 076, RENK expands its portfolio into the 13–21 t weight class, strengthening its position as a global leader in military drivetrain technology. This development represents a major technological leap, enabling new vehicle platforms with greater mobility, enhanced operational readiness, and long-term modernization potential. RENK is sending a clear signal to the market, offering armed forces worldwide a sustainable and future-ready solution.
With a compact width of just 1.20 m, the transmission Transmission A vehicle transmission transfers engine power to the wheels and allows for variable driving speeds. offers maximum design flexibility and space for protection systems, sensors, or additional modules. It reaches speeds speeds in excess of 80 km/h, delivers precise steering performance, and powerful braking capability. Certified to ECE R79 and ECE R13, it is road-approved and designed for extreme climates, especially in arctic conditions.
Its modular design and easily accessible service points significantly reduce maintenance times and operating expenses. Service intervals can be shortened, while integrated condition monitoring detects potential issues early and enables targeted repair actions. Initial test results enable targeted repair actions, which in turn allow substantial lifecycle cost savings.
The HSWL 076 is designed as a future-proof system: its electronic control architecture supports drive-by-wire, hybrid powertrains, and unmanned vehicle functions. The flexible power take-off interface enables the integration of additional drive modules such as electric motors. State-of-the-art digital interfaces and integrated condition monitoring ensure precise control, continuous status tracking, and predictive maintenance.
Technical Data
| Dimensions: | 1,240 x 795 x 675 mm |
| Maximum input power: | 300 kW (402 hp) |
| Vehicle weight, typical: | 13–21 t |
| Power shift transmission Transmission A vehicle transmission transfers engine power to the wheels and allows for variable driving speeds. : | 6 speed forward, 6 speed reverse |
| Overall ratio, mechanical: | 6.2 |
| Stall torque ratio: | 2.3 |
| Transmission Transmission A vehicle transmission transfers engine power to the wheels and allows for variable driving speeds. weight (dry): | 760 kg (+60 kg oil) |
| Brake system: | Fully integrated, service brake, park brake |
| Steering system: | Integrated, high maneuverability, true pivot |
Get in touch with our experts in case of any questions.
