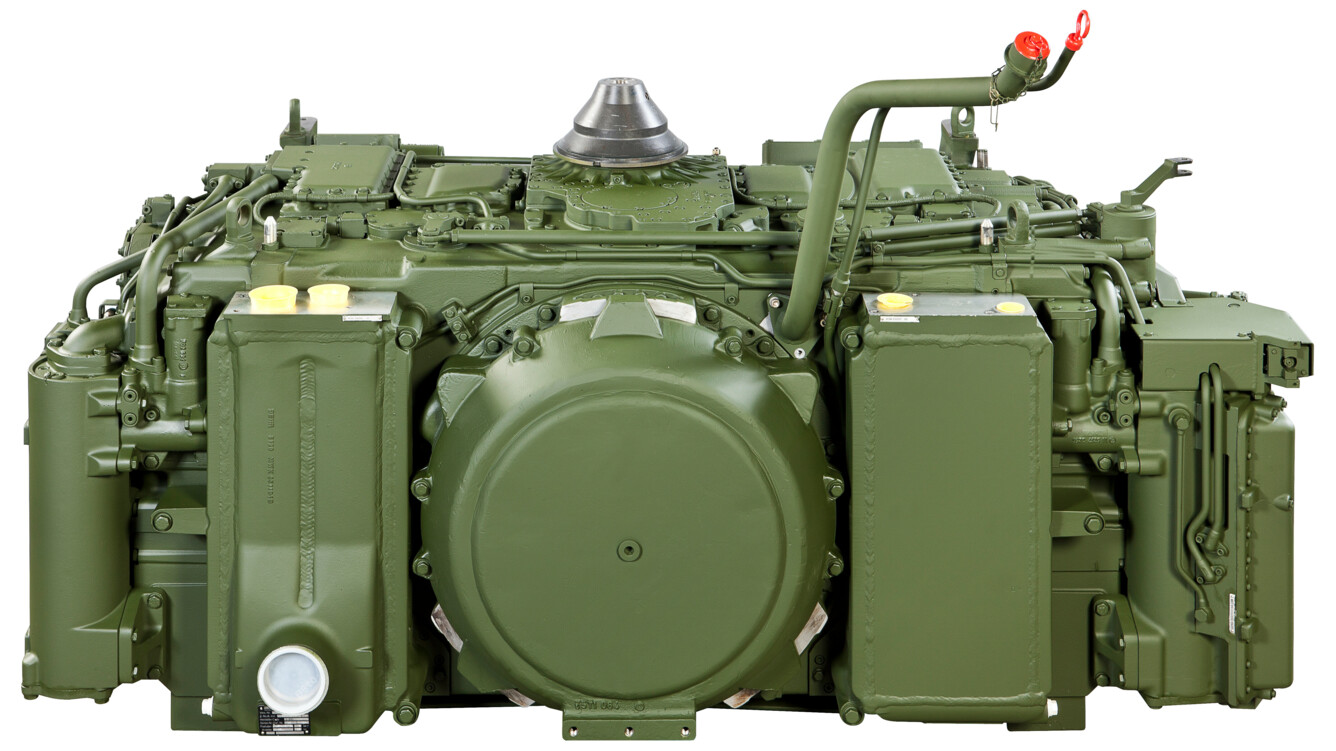

HSWL 284C
The HSWL 284C is a field-proven transmission Transmission The function of a vehicle transmission is to adjust the torque and speed, and to transfer engine power to the drive wheels. with state-of-the-art technology that will also meet the requirements of the coming decades. It ensures maximum mobility, performance and acceleration of the vehicle in any terrain. The electronically controlled automatic transmission Transmission The function of a vehicle transmission is to adjust the torque and speed, and to transfer engine power to the drive wheels. takes the strain off the driver, especially in difficult operating conditions. In conjunction with the modern braking system, optimum driving characteristics are achieved. Thanks to its exceptional reliability and service life, the transmission Transmission The function of a vehicle transmission is to adjust the torque and speed, and to transfer engine power to the drive wheels. makes its contribution to the survivability of the vehicle and, above all, the crew.
Features
- For tracked vehicles Tracked Vehicles A tracked vehicle is a vehicle that moves on tracks rather than wheels, typically used for rough terrain. 50–60 t
- Power range 700–1,100 kW (1,500 hp)
- Direction of rotation of output shaft (forward/reverse) freely selectable
- Front or rear mounting
- Engine unit
- Manual and fully automatic switching without interruption of the power flow with electric remote actuation
- Mechanical emergency operation of the gear unit
- Torque converter with automatic lock-up clutch
- Continuously variable hydrostatic / hydrodynamic superimposed steering transmission Transmission The function of a vehicle transmission is to adjust the torque and speed, and to transfer engine power to the drive wheels.
- Stepless rotation on the vertical axis
- Integrated hydrodynamic/mechanical dual-circuit braking system
- High-performance secondary retarder for service braking and sustained braking effect
- Service and parking brake
- Stepless power take off
- Engine start possible by towing
Technical Data
| Dimensions: | 1,630 x 1,005 x 790 mm |
| Maximum engine power: | 1,100kW (1,500 hp) |
| Vehicle weight, typical: | 50–60 t |
| Power shift transmission Power shift transmission A powershift transmission allows for gear changes under load without interrupting power transmission. : | 4 speed forward, 4 speed reverse |
| Overall ratio, mechanical: | 4.7 |
| Stall torque ratio: | 2.3 |
| Transmission Transmission The function of a vehicle transmission is to adjust the torque and speed, and to transfer engine power to the drive wheels. weight (without oil filling): | 2,150 kg |
| Brake system: | Fully integrated, high performance |
| Steering system: | Integrated, high maneuverability |
